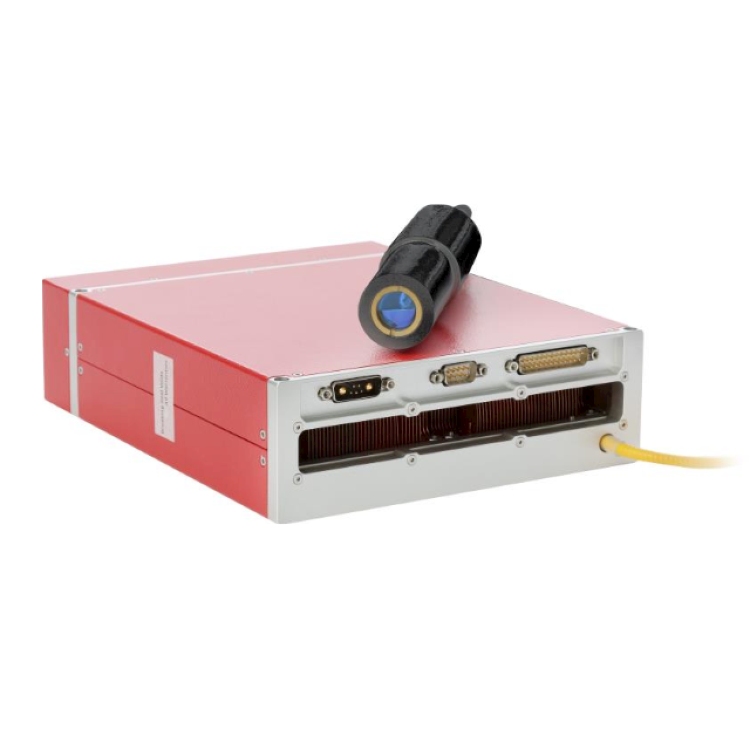

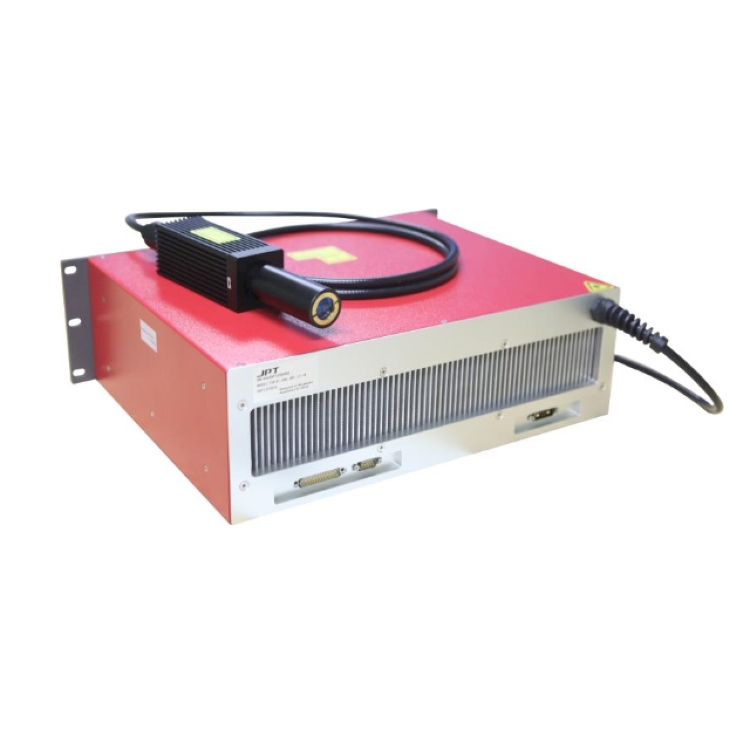

40w 80w Pulse Fiber Laser Power Source JPT Mopa M7 60w

Product Categories

Wuhan CS Tec Co.,Ltd

Contact Now

Brand Name : JPT

Model Number : 60-M7-L1 80-M7-L1 100-M7-L1 120-M7-L1

Place of Origin : China

MOQ : 1

Price : US $2999.00 / Set

Payment Terms : L/C, D/A, D/P, T/T

Product name : Pulsed Fiber Laser

Laser Power : 120W M7

Laser Brand : JPT

Contact Now

40w 80w Pulse Fiber Laser Power Source JPT Mopa M7 60w Products Description

Product Name	M7 Series Pulsed Fiber Laser
Laser Power	60w/80w/100w/120w
Laser brand	JPT
Warranty	2 years
CharacteristicLaserType		60-M7-L1	80-M7-L1	100-M7-L1	120-M7-L1
M²		<1.8
Delivery Cable Length	m	3
Average Output Power	W	>60	>80	>100	>120
Maximum Pulse Energy	mJ	1.5	2.0	1.5	1.5
Pulse Repetition Rate Range	kHz	1-4000
Pulse Width	ns	2-500
Output Power Instability	%	<5
Cooling Method		Air-cooled
Power Supply Voltage(DC)	V	48
Power Consumption	W	<260	<300	<400	<450
Power supply curren trequirement	A	>6	>7	>8	>9
Central Wavelength	nm	1064
Emission Bandwidth@3dB	nm	<15
Polarization		Random
Anti-Reflection Protection		Yes
Built-in Red Beam		Yes
Output Beam Diameter	mm	7.0±0.5
Output Power Tuning Range	%	0～100
Ambient Temperature Rang	℃	0～40
Storage Temperature Range	℃	-10～60
Dimensions	mm	32526075		350280112
PackageSize	mm	580400140		600450200
Weight	Kg	Net:8.5 Gross:9.8		Net:13.2 Gross:14.2

表格宽度最宽为750,超过750的部分及内容均无法展示
