Products Description


Product Name

Scanner

Warranty

1 year

Brand Name

SINO-GALVO

Model

SG2206

SG7110

Speed

Marking Speed

6000mm/s

5000mm/s

Positioning Speed

11000mm/s

8000mm/s

Write speed

516cps

450cps

Step response time
(1% of full stroke)

288us

350us

Step response time
(10% of full stroke)

895us

750us

Tracking error

≤164us

≤164us

Accuracy and error

Linearity

99.9%

99.9%

Repeatability

＜8μRad

＜8μRad.

Gain error

＜5mRad.

＜5mRad.

Zero offset (batch origin error)

＜5mRad.

＜5mRad.

Long time drift
(8 hours of continuous work)

＜0.5mRad.

＜0.5mRad.

Scale drift

＜40PPM/℃

＜40PPM/℃

Zero drift

＜15μRad./℃

＜15μRad./℃

Lens damage threshold

K9 matrix

9.1J/cm^2

9.1J/cm^2

Si substrate

10J/cm^2

10J/cm^2

Lens reflection wavelength

10600nm / 1064nm / 355nm

10600nm / 1064nm / 355nm

Power and signal

Input voltage

±15VDC

±15VDC

Average working current

2A

2A

Signal interface

digital:XY2-100
simulation:±5V


XY2-100

Peak current

8A

-

Position signal input impedance


10KΩ±1%

-

Mechanical scanning angle

±11°

±11°

Working current, temperature, size

Operating temperature

0℃--45℃

0℃~45℃

Storage temperature

-10℃--60℃

-10℃~60℃

Laser input aperture

10mm

10mm

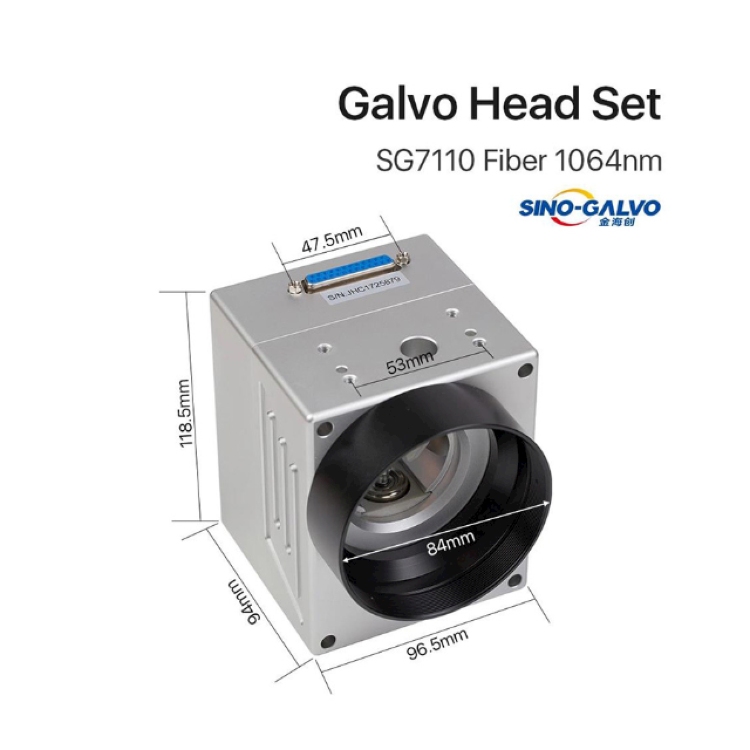

size (length×width×height)

118.5×96.5×94.1mm

118.5×96.5×93.6mm

Weight

≈1.65Kg

≈1.65Kg
