Product introductions
Industrial cooling system CWFL-20000 is designed to offer advanced features while also making 20KW fiber laser cooling easier and more efficient. With dual refrigeration circuit, this recirculating water chiller system has enough capacity to cool the fiber laser and the optics independently and simultaneously. All of the components are carefully selected to ensure reliable operation. A smart temperature controller is installed with advanced software to optimize the chiller's performance. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. RS-485 interface is provided for communication with the fiber laser system.
Product features
♦Dual cooling circuit
♦Active cooling
♦Temperature stability: ±1°C
♦Temperature control range: 5°C ~35°C
♦Refrigerant: R-410a
♦Intelligent digital control panel
♦Integrated alarm functions
♦Back mounted fill port and easy-to-read water level check
♦RS-485 Modbus communication function
♦High reliability, energy efficiency and durability
♦Available in 380V
Product specification
| Model | CWFL-20000ET |
| Voltage | AC 3P 380V |
| Frequency | 50Hz |
| Current | 8.1-43A |
| Machine power | 21.5kW |
| Electric assisted power | 1000W+4800W |
| Precision | ±1℃ |
| Reducer | Thermostatic expansion valve |
| Pump power | 1.1 kW+3 kW |
| Tank capacity | 220L |
| Inlet and outlet | Rp1/2”+ Rp1-1/2” |
| Lift | 63M+61.5M |
| Rated flow | 3L/min+＞150Lmin |
| N.W | 545Kgs |
| G.W | 645Kgs |
| Dimension | 171 X 90 X 181cm (L X W X H) |
| Package dimension | 182 X 104 X 204cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Details
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

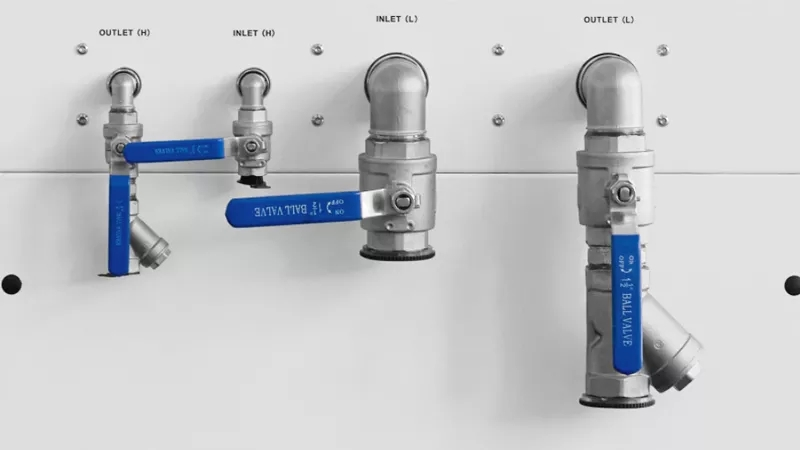

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Easy drain port with valve
Draining process can be controlled very easily.
Ventilation Distance
Product Working Principle
