ODM 200w Pulsed Fibre Laser Cleaner Machine For Rust

Wuhan CS Tec Co.,Ltd
Contact Now

ODM 200w Pulsed Fibre Laser Cleaner Machine For Rust

  • 1
  • 2

Brand Name : CS

Model Number : CS-CL-01

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Product name : pulsed cleaning machine

Laser Power : 200W

Peak power : 80W

Cooling way : Water-cooling

Contact Now


Product introduction
Pulsed 200w backpack is the new generation product with a high technology that applies for the purpose of the material surface cleaning application, which is easily to be set up, operated and automated. No need of chemistry, water or other working medias, the equipment can be also applied for removing the resin, grease, stains, dirt, rust material, coating, coating and paint. This device can be auto-focused on a specified area of the target surface of the material, which leads to a high performance of cleanliness result.

Product features
♦Non-contact cleaning, no damage to parts matrix.
♦Precise position and size selective cleaning;
♦High cleaning efficiency and save time.
♦Operation system is stable and nearly requires no maintenance.

Advantages
♦No chemical solution is needed, and there is no environmental pollution caused by chemical cleaning. It is a new technology, new process and new method to replace pickling and phosphating.
♦Laser cleaning is non-contact. It can be transmitted through optical fiber and combined with robots or manipulators to conveniently realize long-distance operation. It can clean parts that are not easily reached by traditional methods. Good choice.

Product Application
Widely used shipbuilding, auto repair, rubber molds, high-end machine tools, rails and environmental protection industry.

Product specification

 Operating Evironment
 Power supply

 Single-phase 220V±10%, 50/60Hz   AC(Customizable: 110V, 50Hz AC)

 Overall power consumption  <4500W
 Operating Temperature  5℃~40℃
 Operating Humidity  ≤80%
 Optical parameters
 Average laser power  200W
 Power instability  <5%
 Laser working mode  Pulse
 Pulse width  50-500ns adjustable
 Maximum single pulse energy  10mJ
 Peak power  80kW
 Power adjustment range (%)  10-100(The gradient is adjustable)
 Repetition frequency (kHz)  3-200 (The gradient is adjustable)
 Fiber length  5m (customizable)
 Cooling way  Water-cooling
 Cleaning head parameters
 Scanning range (length * width)

 Single axis:0~120mm, continuously   adjustable;Biaxial:no less than 100mm,   supporting 6 scanning modes

 Focal length of field lens (mm)  160mm (Optional 160mm~500mm)
 Focal depth  Maximum of 20mm

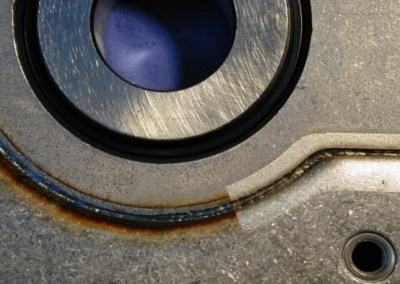

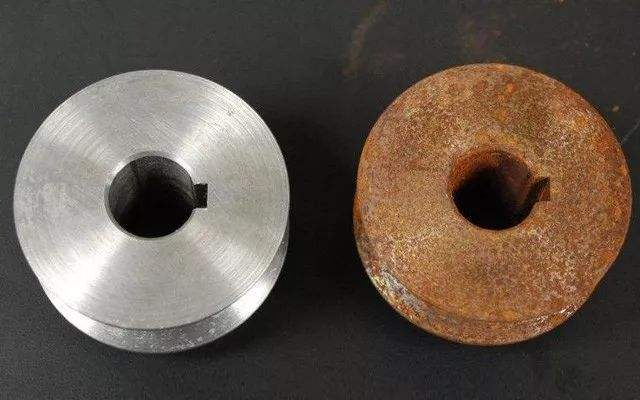

Application samples
ODM 200w Pulsed Fibre Laser Cleaner Machine For RustODM 200w Pulsed Fibre Laser Cleaner Machine For Rust
