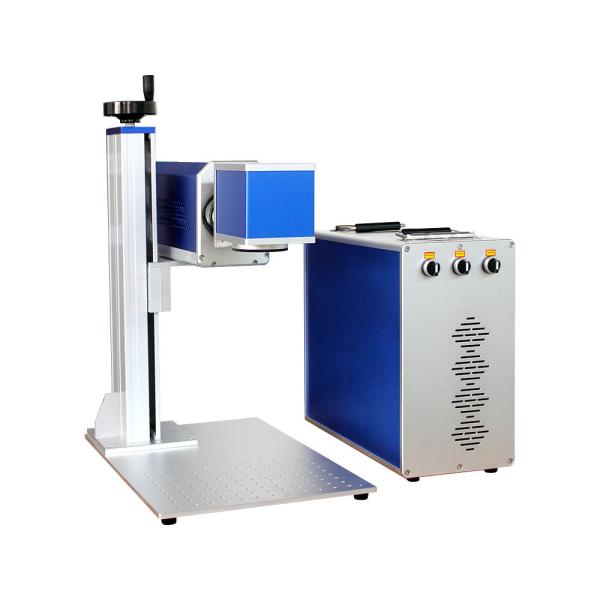

OEM 20w Fiber Laser Engraver Marking Machine Portable

Name: OEM 20w Fiber Laser Engraver Marking Machine Portable
Brand: Max/Raycus
Price: 1 USD

Brand Name : Max/Raycus

Model Number : 20W/30W Laser Marking Machine

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Product name : 20W/30W Laser Marking Machine

Brand : Max/Raycus

Types of : Laser Welding Machine

Output power (W) : 20W 30W

Warranty period : 1 year

Contact Now

Product Introduction

This portable Laser Marking Machine is an upgraded product of cutting-edge technology .It perfectly shows the technological concept of Mac .At the same time, it's a revolutionary creation in laser marking system of working speed, high-definition resolution, high intelligence.

Product Features

♦Latest design, the most advance solid fiber laser, high quality laser beam

♦Fast working speed, high efficiency

♦Integrated design, small bulk, suitable for various occasions

♦Maintenance-free, no consumption, energy-saving power

♦Perfect marking logo, never fade

Product specification

Laser source	Max/Raycus
Power	20W/30W
Laser wavelength	1050-1070nm
Repetition frequency	20-80KHZ
TEMOO Gaussian beam	<2
Marking range	100100mm 200200mm 300*300mm
Marking depth	≤0.4mm
Marking speed	≤10000mm/s
Minimum linewidth	0.01mm
Minimum character	0.15mm
Repeat accuracy	±0.002
Power supply	110/220V,50/60Hz
Power consumption	500W
Total weight	About 75kg
Operating system	Win 7 32bits
Cooling	Built- in air cooling
Control interface	Standard USB
File format	All the characters/ fonts of WINDOWS operating system
Laser device type	Impulse fiber laser device
Working life	100,000 hours

Configuration

Laser source	Max/ Raycus 20W/30W
Focusing system	Double red light focusing system
Marking indicating system	Built-in contour, size, orientation, position indicator
Lens system	Import wavelength, a full range of chipsets
Cooling system	Air cooling
Laser galvo	Integrated optical bench design, professional digital galvanometer, high speed galvo
Professional laser control card	JCZ V4.0 / EZCAD
Computer	Industrial control mainframe
Bracket	Built-in lifting bracket

Application samples

Product Tags:

OEM 20w fiber laser

Portable 20w fiber laser

20w fiber laser engraver

OEM 20w Fiber Laser Engraver Marking Machine Portable Images
