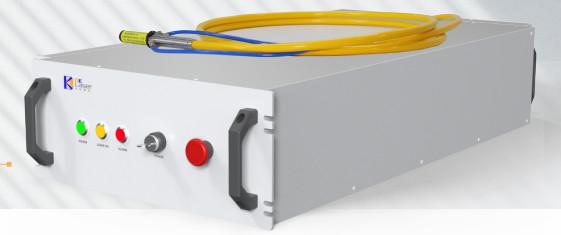

Product introduction
The narrow line width CW fiber laser adopts single frequency modulation and amplification technology. While maintaining excellent beam quality and extremely narrow spectrum width, it achieves high power stable output, which is suitable for high power spectrum beam combining. The compact, robust design meets the requirements of application on extreme environments.
Product Features
♦Customizable spectral width, available in 10~60GHz
♦High beam quality, M² <1. 5
♦Compact structure, easy to be integrated
♦Central wavelength available in 1050nm ~ 1090nm, (special wavelength can be customized)
♦High reliability, High standard environment test passed (high temperature, vibration, damp and hot, etc.), Design customizable for extreme storage temperature
Product specification
| Model |
YNL 1500 |
YNL 2000 |
YNL 3000 |
| Output Power |
1500W |
2000W |
3000W |
| Center Wavelength |
1050-1090nm |
1050-1090nm |
1050-1090nm |
| Operation Mode |
CW |
CW |
CW |
| Beam Quality(M2) |
≤ 1.5 |
≤ 1.5 |
≤ 1.5 |
| Power Range |
1%~100% |
1%~100% |
1%~100% |
| Output Power Instability |
≤ 3 % |
≤ 3 % |
≤ 3 % |
| Spectral Width(FWHM) |
10-60Ghz |
20-60Ghz |
30-60Ghz |
| Polarization State |
Random |
Random |
Random |
| Operating Voltage |
AC380V |
AC380V |
AC380V |
| Laser Power Consumption |
≤ 5kW |
≤ 7kW |
≤ 10kW |
| QBH Output Fiber Length |
3 m |
3 m |
3 m |
| Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
| Control Interface |
RS485/Ethernet |
RS485/Ethernet |
RS485/Ethernet |
| Dimensions |
900mm×450mm×288mm |
900mm×450mm×288mm |
900mm×450mm×288mm |
| Weight |
≤ 60 kg |
≤ 60 kg |
≤ 60 kg |
