CS Fiber Laser Special Wavelength Fiber Lasr-450nm Blue Laser

Wuhan CS Tec Co.,Ltd
Contact Now

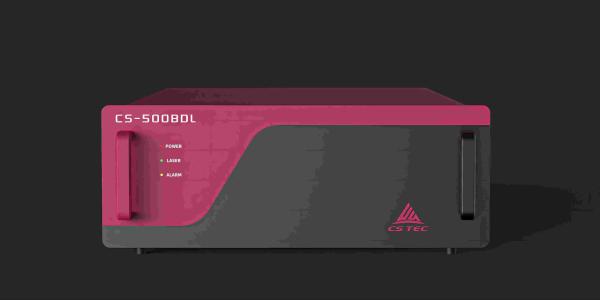

CS Fiber Laser Special Wavelength Fiber Lasr-450nm Blue Laser

Brand Name : CS

Model Number : CS-50BDL/CS-200BDL/CS-500BDL

Place of Origin : CHINA

MOQ : 1set

Price : USD73999-74999/set

Payment Terms : L/C, T/T

Delivery Time : 14work days

Contact Now

Description:

The 450nm blue laser series are available at powers up to 500w. Brings the qualitative advantages of the blue laser to a wider range of industrial applications, while also enabling processing speeds anywhere from two times to more than twenty times faster than current infrared lasers, is generally used for applications of the welding of gold, silver, copper and other non-ferrous metals, also can be applied to the welding of new energy batteries, 3C and alloy welding and other fields.



Features:

High absorption rate of non-ferrous metals

Superior to all other wavelengths even at equal power

Optimal OEM Solution

Model CS-50BDL CS-200BDL CS-500BDL
Optical Parameters
Operation Mode CW/Modulation
Central Wavelength/nm 450±20
Modulation Frequency/Hz 5000
Output power/W 50 200 500
Power Range/% 10-100
Output power Instability(RMS)/% ±1.5
(μm) 105 400 400
Output Fiber connector QBH
Output fiber length/m 5
Other Parameters
Operating Voltage 48VDC/220VDC 220VDC
Cooling Water/Air cooling Water Cooling
Operating Humidity/% 10~40
Operating Temperature/℃ 10~40
Storage Temperature/℃ -10~60
