Cleaning Series Pulsed OEM Laser Machine Fiber Laser Mopa 200w

Brand Name : CS

Model Number : CS-200W

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Laser model : CS-200W

Laser brand : CS

The warranty time : 1 year

After-sales service : Solve online

Contact Now

Product introduction

Cleaning series High-power pulsed fiber lasers series is the latest product. It has average output of 200W, high single pulse energy, uniform square or circular spot energy distribution, easy to use and maintain. They are the ideal products for mold surface treatment, automobile manufacture, shipping industry, petrochemical industry and tire manufacture,etc.

Product features

♦Large pulse energy,

♦Collimating head output,

♦Air-cooled design

♦Main application: laser cleaning

Product specification

♦Optical characteristics

N	Characteristics	Parameter value	Unit
1	Center wavelength	1060-1080	nm
2	Spectral width(FWHM)	< 30	nm
3	Maximum pulse energy	10	mJ
4	Output Power	200	W
5	Power adjustment range	0-100	%
6	Frequency adjustment range	10-400	kHz
7	On/off light response time	< 20	μs
8	Pulse Width	50-500	ns
9	Output power stability	< 5	%
10	Beam quality M2	< 30	/
11	Polarization direction	Random	/
12	Resist high reaction	Yes	/
13	Indicator light	With	/
14	Spot diameter (4σ)	7±1	mm
15	Output armor cable length	5	m

♦Electrical characteristics

N	Characteristics	Parameter value	Unit
16	Power Supply voltage	48	VDC
17	Working current	<15	A
18	Power consumption	<720	W
19	Recommended power	≥1000	W

♦Environmental requirements

N	Characteristics	Parameter value	Unit
20	Operating temperature	0 - 40	℃
21	Storage temperature	-10 - 60	℃
22	Cooling	Air cooling	/

♦Structural characteristics

N	Characteristics	Parameter value	Unit
23	Laser dimension	48344096	mm³
24	Lsolator dimension	115*Φ24	mm³
25	Net weight	<20	kg

♦The pulse width corresponds to the power reduction frequency point and the maximum single pulse energy

N	Pulse width (ns)	Power reduction frequency (kHz)	Upper frequency limit (kHz)	Max single pulse energy (mJ)
1	50	100	400	2.00
2	60	95	400	2.10
3	70	90	400	2.22
4	80	85	400	2.35
5	100	65	400	3.08
6	150	40	400	5.00
7	200	30	400	6.67
8	250	25	400	8.00
9	350	20	400	10.0
10	500	20	400	10.0

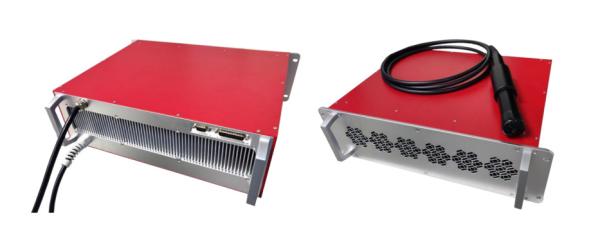

Cleaning Series Pulsed OEM Laser Machine Fiber Laser Mopa 200w

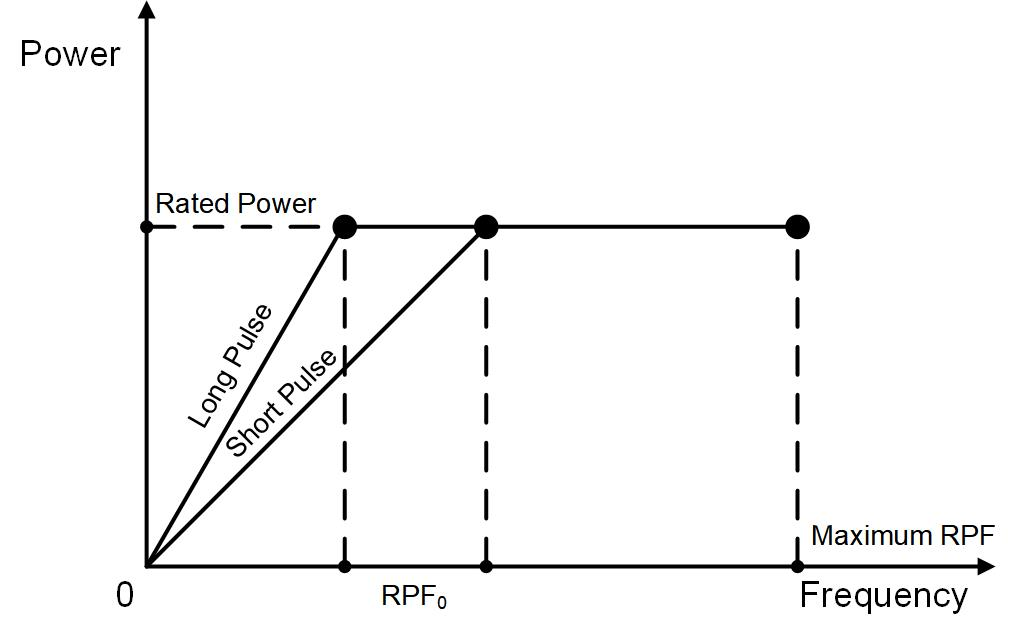

The definition of threshold frequency in the pulsed fiber laser
