Product introduction
The product has various compatibility and control modes, which can switch between pulse and continuous mode, and simultaneously handle the. processing tasks of two different lasers The pulse width waveform is flexible and adjustable, the heat dissipation is fast, and the electro-optical conversion rate is over 30%, which is another option for the long pulse width , high peak power applications.
Product features
♦High beam quality
♦Alternative lamp pump lasers
♦High photoelectric conversion efficiency
♦Pulse and continuous working modes
♦High pulse power, stable power, and high peak power
Product application
♦Alternative of Light-Pumped YAG Lasers
♦Spot/Seam Welding
♦Ceramics Cutting
♦Precision Welding /Cutting
♦Electronic Parts Processing
♦Power Battery Welding
♦Soldering
♦PCB Welding
Product specification
♦Optical characteristics
| N | Characteristics | Value (Range) | Unit |
| 1 | Central Wavelength | 1070-1090 | nm |
| 2 | Spectral width @ 3dB | < 5 | nm |
| 3 | Max. Avg Power | CW Mode | 300 | W |
| Pulsed Mode | 150 | W |
| 4 | Max. Peak Power | 1500 | W |
| 5 | Max. Pulse Energy | 15 | J |
| 6 | Operation Mode | Pulsed / CW | / |
| 7 | Power Turning Range | 10 - 100 | % |
| 8 | Pulse Duration | 0.02-50 | ms |
| 9 | Operation Frequency | ≤5 | kHz |
| 10 | Duty Cycle | ≤50 | % |
| 11 | Laser switching ON/OFF time | < 10 | μs |
| 12 | Output Power Instability | < 3 | % |
| 13 | Beam Quality (M2) | < 1.2 | / |
| 14 | Polarization | Random | / |
| 15 | Red Guide Laser Power | 1-2 | mW |
| 16 | Output Fiber Termination | QCS or QBH(Default) | / |
| 17 | QBH Beam Divergence | <120 | mrad |
| 18 | QCS collimated beam diameter(4σ) | 6±0.5 | mm |
| 19 | Delivery Fiber Length | 5 | m |
| 20 | Output Fiber Core Diameter | 14 | μm |

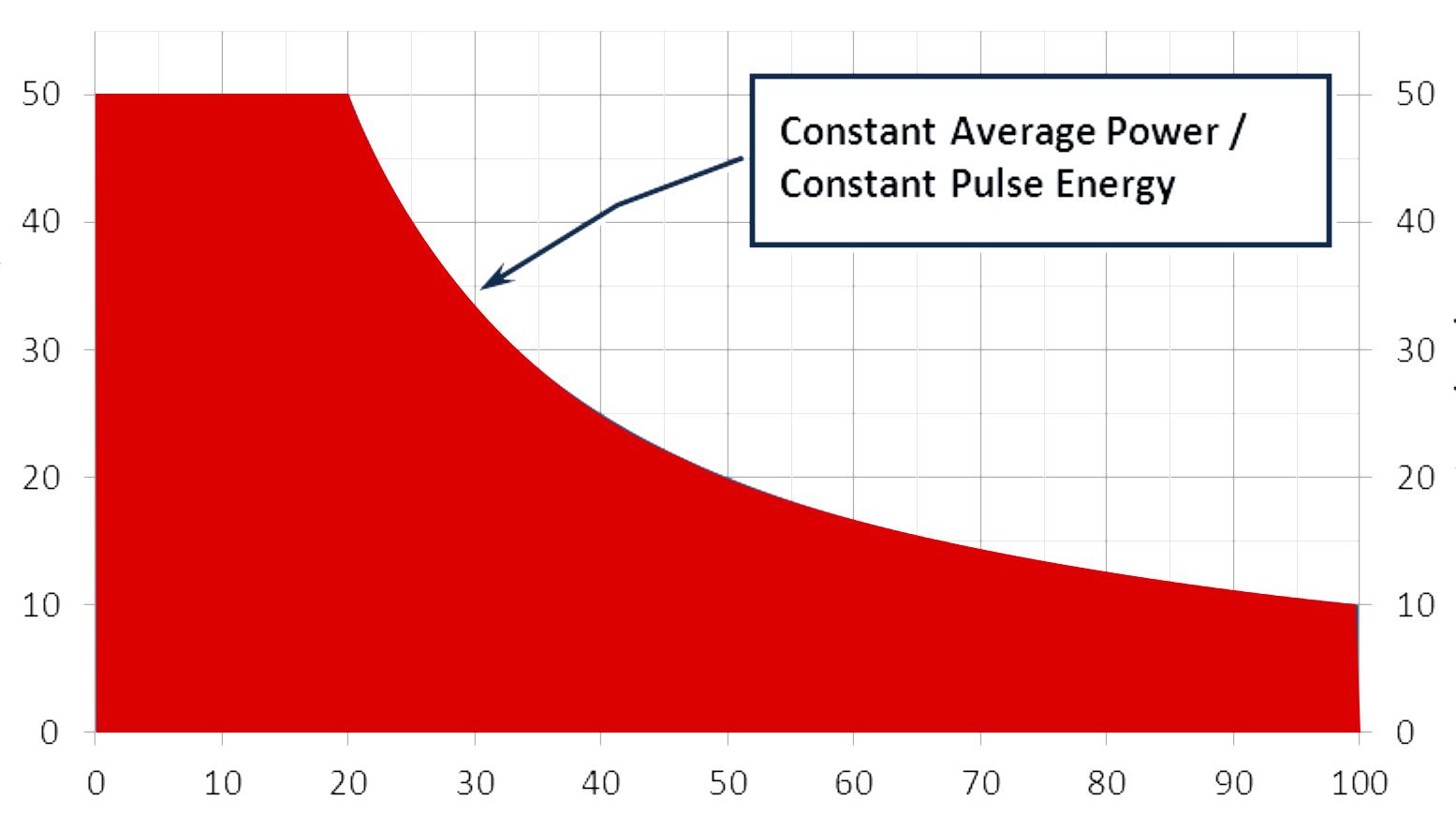

Peak Power / %
♦Electrical characteristics
| N | Characteristics | Value (Range) | Unit |
| 21 | Analog Power Control | 1-10 | V |
| 22 | Input AC Voltage | 220 | VAC |
| 23 | Laser Operating Current | < 10 | A |
| 24 | Maximum Power Consumption | <1680 | W |
♦Environmental requirements
| N | Characteristics | Value (Range) | Unit |
| 25 | Operating Ambient Temperature Range | 0 - 40 | ℃ |
| 26 | Storage Temperature | -10 ~ 60 | ℃ |
| 27 | Cooling Method | Forced Air | / |
♦Structural characteristics
| N | Characteristics | Value (Range) | Unit |
| 28 | Laser Color | Red | / |
| 29 | Laser Dimensions | 555*433*164(not i nclude handle) | mm |
| 30 | QBH Dimension | Standard | / |
| 31 | QCS Dimension | Φ24*190(Optional) | mm |
| 32 | Net Weight | <40 | kg |
