DK High Power Single Mode CW Fiber Laser 4000W

Brand Name : DK

Model Number : DK-YSM 4000AR

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Product name : CW Fiber Laser Source

Application : cutting metal

Laser model : DK-YSM 4000AR

Laser power : 4000

Laser brand : DK

Contact Now

Product introductions

4000W multi-mode CW laser source, designed by proprietary key components such as beam combiner, high power output connector, etc;The thinner core ﬁber output at same output power, result in higher processing eﬃciency.

Product features

♦Ultra-high stability

♦High WPE

♦Super processing capacity

Product specification

Optical Parameters		DK-YMM 4000
Operation Mode		CW/Modulation
Polarization State		Random
Beam Quality	M2	<10@100µm
	BPP(mm·mrad)	≤3.4@100µm
Output Power		4000W
Output Fiber Diameter		100µm
Max. Modulation Frequency		5kHz
Rise/Fall Time		<20µs
Power Range		10%~100%
Output Power Instability		≤1.5%
Center Wavelength		1080±10nm
3dB Spectral Width		<6nm
Indicated Light Wavelength		635nm
Indicated Light Power		>0.3mW
Electronic Control Parameters		DK-YMM 4000
Operating Voltage		380V
Operating Frequency		50Hz
Laser Power Consumption		<20kW
Other Parameters		DK-YMM 4000
Output Fiber Length		20m
Cooling		Water Cooling
Dimensions		1180mm×800mm×1170mm
Weight		360kg
Operating Temperature		10℃~40℃
Storage Temperature		-15℃~60℃
Relative Humidity		20%-80%

Product Samples

DK High Power Single Mode CW Fiber Laser 4000W

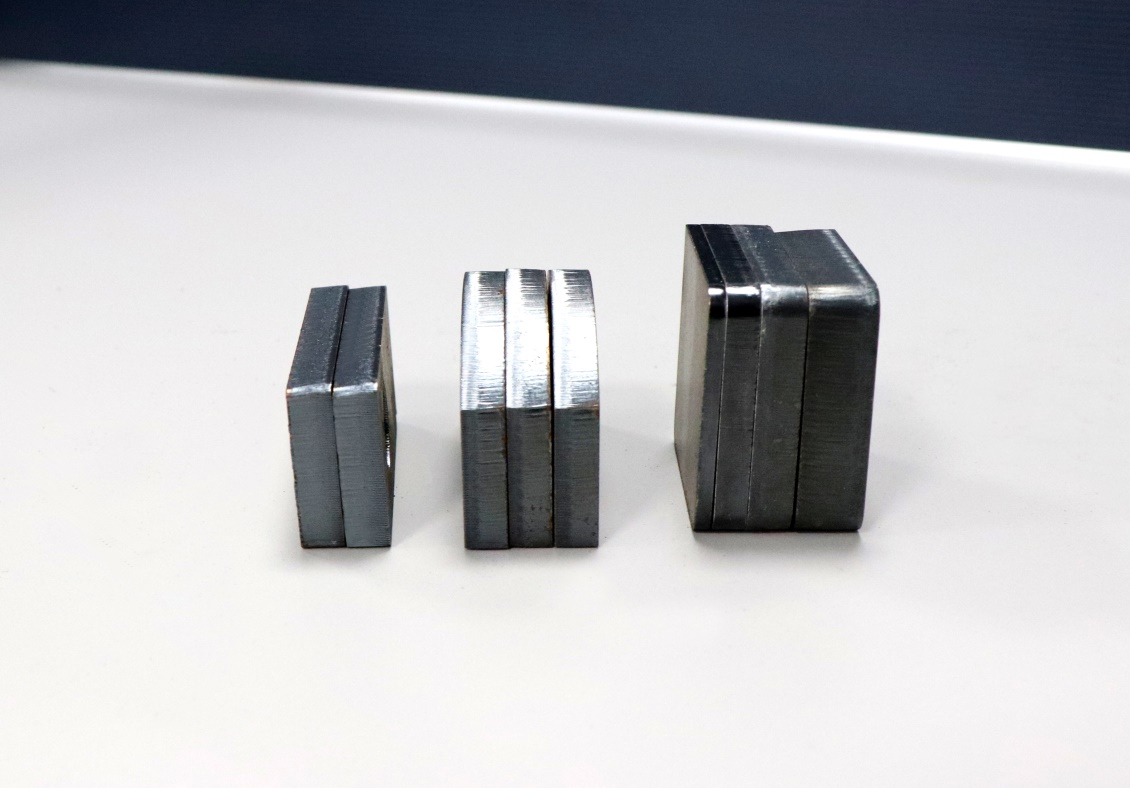

14MM/12MM/6MM smooth edge cutting of carbon steel

DK High Power Single Mode CW Fiber Laser 4000W

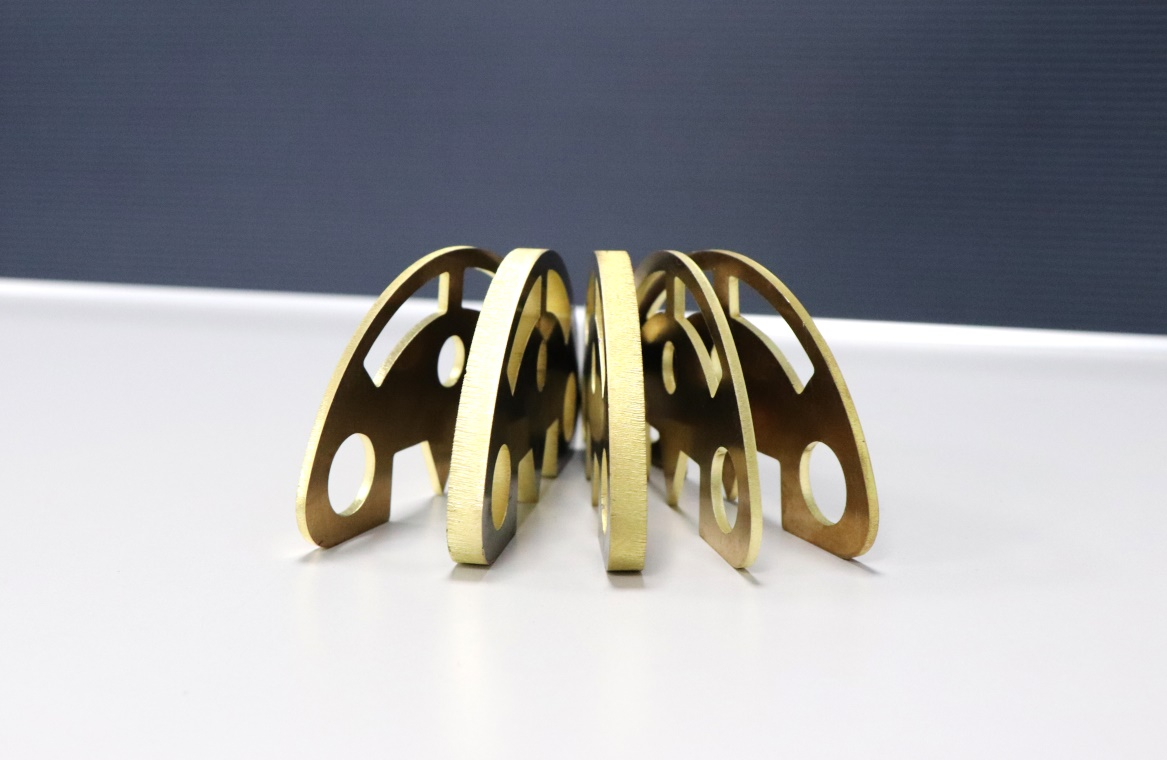

10MM/8MM/2MM cutting of bass

DK High Power Single Mode CW Fiber Laser 4000W

10MM/6MM/2MM cutting of red copper

DK High Power Single Mode CW Fiber Laser 4000W

Cutting of stainless steel and carbon steel
