Multi mode CW Fiber Laser 15000W Optical Source Laser

Brand Name : DK

Model Number : DK-YSM 15000AR

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Product name : CW Fiber Laser Source

Application : cutting metal

Laser model : DK-YSM 15000AR

Laser power : 15000

Laser brand : DK

Contact Now

Product Introductions

Multi-mode CW fiber laser series realize as high as 15 kW output by self-developed key devices (such as fiber laser module, signal combiner and etc.) and integrating technology. The high power output of this type of fiber laser has excellent reliability and environmental adaptability, and is especially suitable for high-end industrial application.

Product Features

♦Ultra high stability

♦High WPE

♦Super processing capacity

♦Excellent performance

Product specification

Optical Parameters		DK-YMM 10000	DK-YMM 120000	DK-YMM 150000
Operation Mode		CW/Modulation	CW/Modulation	CW/Modulation
Polarization State		Random	Random	Random
Beam Quality	M2	<10@100µm	<10@100µm	<12@100µm
Beam Quality	BPP(mm·mrad)	≤3.4@100µm	≤3.4@100µm	≤4@100µm
Output Power		10000W	12000W	15000W
Output Fiber Diameter		100µm	100µm,200µm	100µm,200µm
Max. Modulation Frequency		5kHz	5kHz	5kHz
Rise/Fall Time		<20ms	<20ms	<20ms
Power Range		10%~100%	10%~100%	10%~100%
Output Power Instability		≤1.5%	≤1.5%	≤1.5%
Center Wavelength		1080±10nm	1080±10nm	1080±10nm
3dB Spectral Width		<8nm	<8nm	<8nm
Indicated Light Wavelength		635nm	635nm	635nm
Indicated Light Power		>0.3mW	>0.3mW	>0.3mW
Electronic Control Parameters		DK-YMM 10000	DK-YMM 120000	DK-YMM 150000
Operating Voltage		380V	380V	380V
Operating Frequency		50Hz	50Hz	50Hz
Laser Power Consumption		<30kW	<36kW	<45kW
Other Parameters		DK-YMM 10000	DK-YMM 120000	DK-YMM 150000
Output Fiber Length		20m(Customizable)	20m(Customizable)	20m(Customizable)
Cooling		Water Cooling	Water Cooling	Water Cooling
Dimensions		1220mm×780mm×1580mm	1220mm×780mm×1580mm	1660mm×1000mm×1471mm
Weight		480kg	530kg	650kg
Operating Temperature		10℃~40℃	10℃~40℃	10℃~40℃
Storage Temperature		-15℃~60℃	-15℃~60℃	-15℃~60℃
Relative Humidity		20%-80%	20%-80%	20%-80%

Product Samples

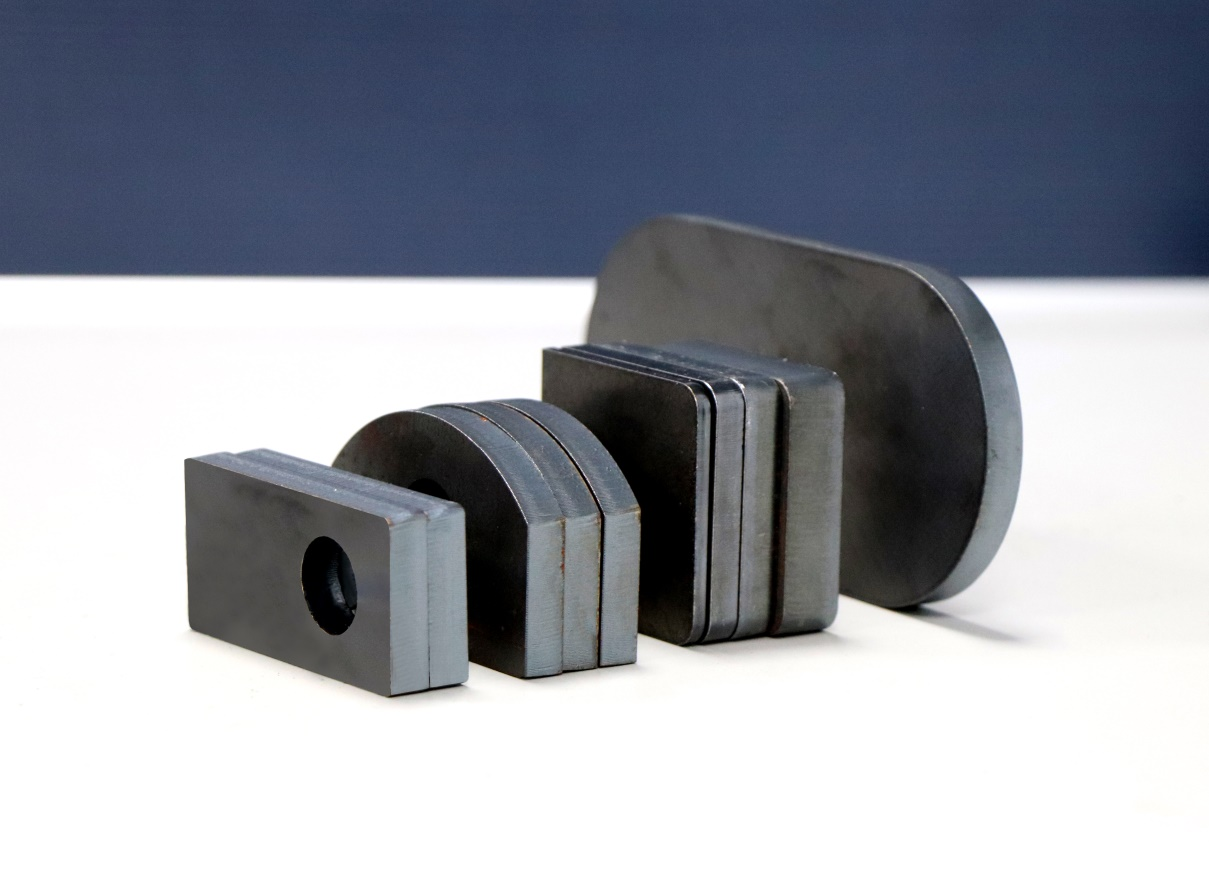

16MM/12MM/8MM smooth edge cutting of carbon steel

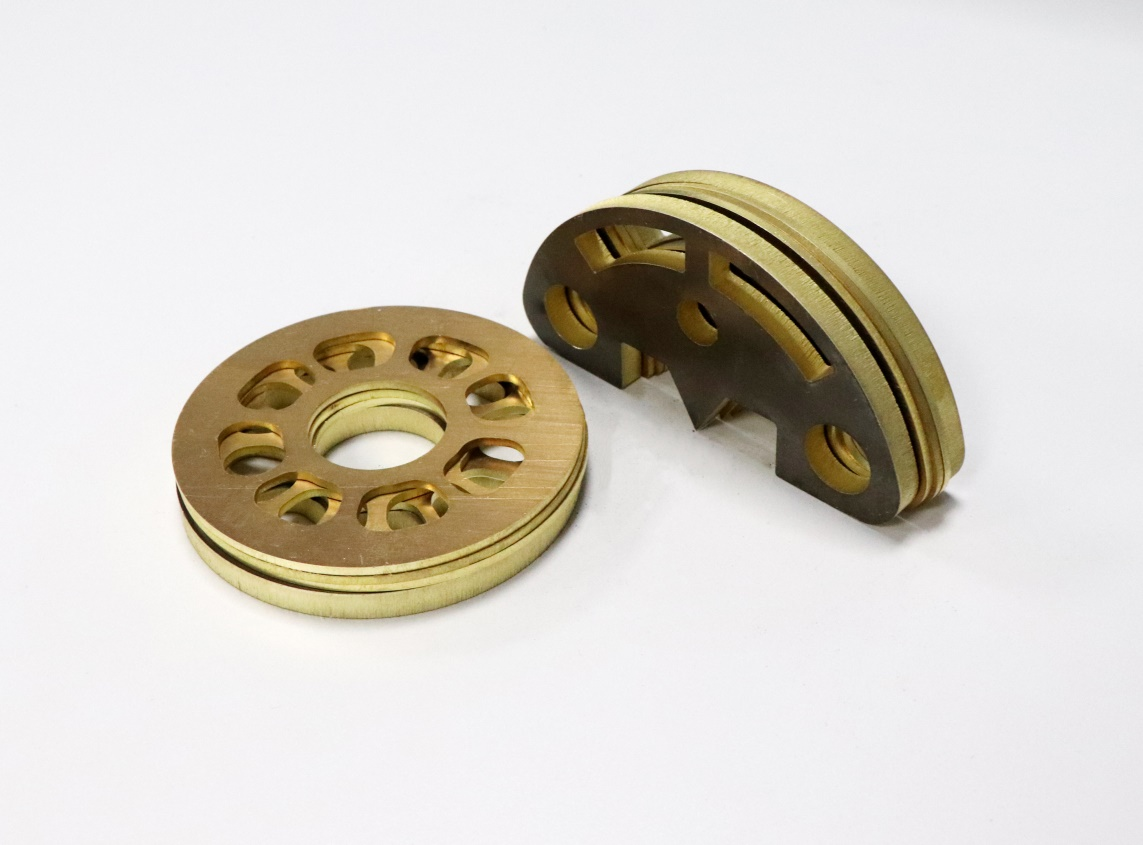

10MM/8MM/2MM cutting of brass

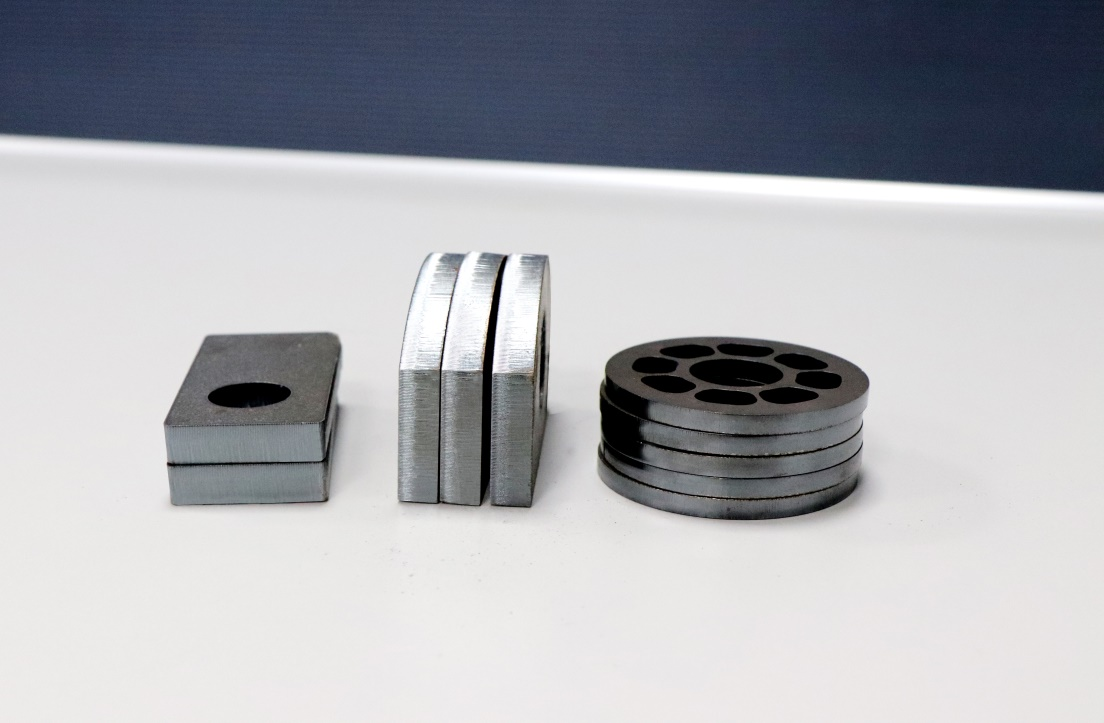

16MM/12MM/8MM/4MM cutting of carbon steel
