ODM CW Fiber Laser Generator For Welding Cutting Machine

Product Categories
Wuhan CS Tec Co.,Ltd
Contact Now

ODM CW Fiber Laser Generator For Welding Cutting Machine

Brand Name : DK

Model Number : DK-YSM 1500AR

Certification : CE

Place of Origin : China

MOQ : 1

Price : US $4699.00 / Set

Payment Terms : L/C, D/A, D/P, T/T

Product name : CW Fiber Laser Source

Application : cutting metal

Laser model : DK-YSM 1500AR

Laser power : 1500

Laser brand : DK

Contact Now

Products Description


Product Name

CW Fiber Laser Source

Application

cutting metal

Laser Model

DK-YSM 1500AR

Laser brand

DK

Warranty

2 years

Operation Mode

CW/Modulation

Polarization State

Random

M2

<1.2@20μm

Beam Quality

BPP(mm-mrad)

≤0.4@20μm

Output Power

1500W

Output Fiber Diameter

20μm(20-100μm Customizable)

Max.Modulation Frequency

20kHz

Rise/Fall Time

<15μs

Power Range

10%~100%

Output Power Instability

≤1.5%

Center Wavelength

1080±10nm

3dB Spectral Width

<4nm

Indicated Light Wavelength

635nm

Indicated Light Power

>0.3mW

Operating Voltage

380V

Operating Frequency

50Hz

Laser Power Consumption

<4.5kW

Output Fiber Length

15m(Customizable)

Cooling

Water Cooling

Dimensions

750mm*455mm*170mm

Weight

45kg

Operating Temperature

10°C~40°C

Storage Temperature

-15°C~60°C

Relative Humidty

20%-80%

表格宽度最宽为750,超过750的部分及内容均无法展示

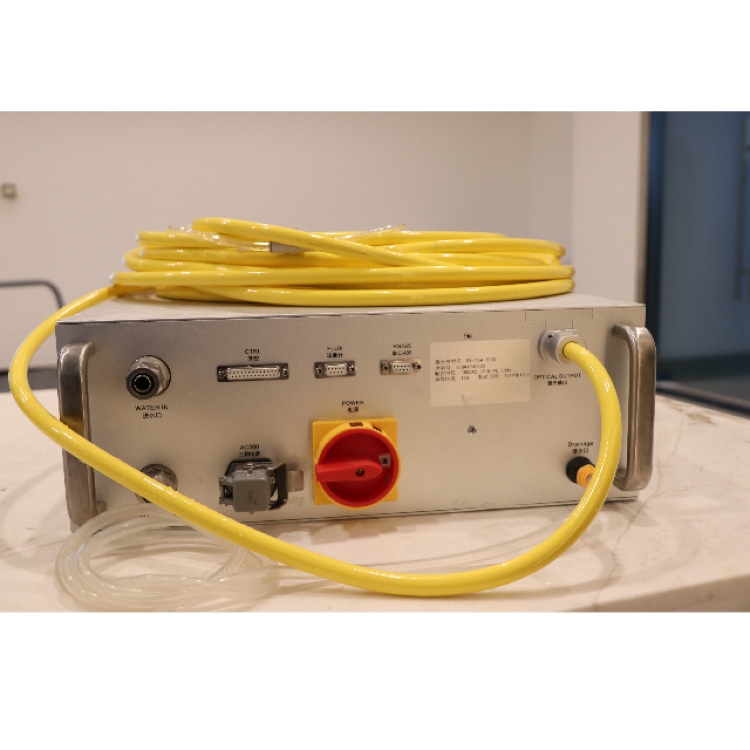

ODM CW Fiber Laser Generator For Welding Cutting Machine
ODM CW Fiber Laser Generator For Welding Cutting Machine
ODM CW Fiber Laser Generator For Welding Cutting Machine
ODM CW Fiber Laser Generator For Welding Cutting Machine
ODM CW Fiber Laser Generator For Welding Cutting Machine


ODM CW Fiber Laser Generator For Welding Cutting Machine

ODM CW Fiber Laser Generator For Welding Cutting Machine


ODM CW Fiber Laser Generator For Welding Cutting Machine

ODM CW Fiber Laser Generator For Welding Cutting Machine


ODM CW Fiber Laser Generator For Welding Cutting Machine

Company Profile


ODM CW Fiber Laser Generator For Welding Cutting Machine


ODM CW Fiber Laser Generator For Welding Cutting Machine





ODM CW Fiber Laser Generator For Welding Cutting Machine
