OEM High Power CW Laser Source 2000W Fiber Laser Source

Brand Name : DK

Model Number : DK-YSM 2000AR

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Product name : CW Fiber Laser Source

Application : cutting metal

Laser model : DK-YSM 2000AR

Laser power : 2000

Laser brand : DK

Contact Now

Product Introductions

2000W single mode fiber laser is a product of DK’s key advantage. This product employs the framework of single resonant cavity, obtaining beam quality much better than same-power products employing other frameworks, which is one of a kind in high brightness application. It is widely used in different kinds of laser processing. Test result shows that, sheet cutting with this laser is dramatically higher than 3kW multi-mode fiber laser in speed, and smooth edges can be attained in plate cutting. The modulation frequency of the laser can be 20 kHz at maximum, then high speed drilling can be implemented; and the WPE is higher than 40%, which is at the top level in the industry.

Product Feature

♦High beam quality M²<1.2

♦Good cutting performance

♦Processing fiber can be customized in length more than 20 meters

♦WPE>40%

Product specification

Optical Parameters		DK-YSM 2000
Operation Mode		CW/Modulation
Polarization State		Random
Beam Quality	M2	<1.3@25µm
	BPP(mm·mrad)	≤0.45@25µm
Output Power		2000W
Output Fiber Diameter		25µm(20-100µm Customizable)
Max. Modulation Frequency		20kHz
Rise/Fall Time		<15µs
Power Range		10%~100%
Output Power Instability		≤1.5%
Center Wavelength		1080±10nm
3dB Spectral Width		<4nm
Indicated Light Wavelength		635nm
Indicated Light Power		>0.3mW
Electronic Control Parameters		DK-YSM 2000
Operating Voltage		380V
Operating Frequency		50Hz
Laser Power Consumption		<6kW
Other Parameters		DK-YSM 2000
Output Fiber Length		15m(Customizable)
Cooling		Water Cooling
Dimensions		760mm×455mm×170mm
Weight		53kg
Operating Temperature		10℃~40℃
Storage Temperature		-15℃~60℃
Relative Humidity		20%-80%

Product Samples

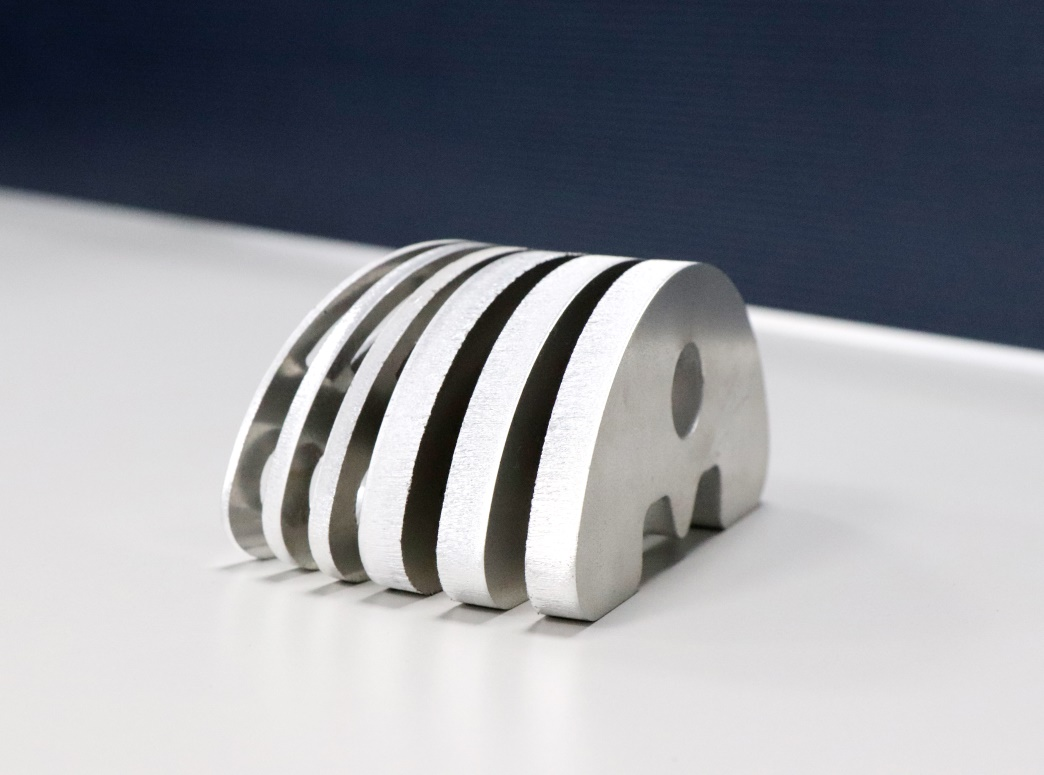

14mm/10mm/8mm/4mm smooth edge cutting of carbon steel(CS)

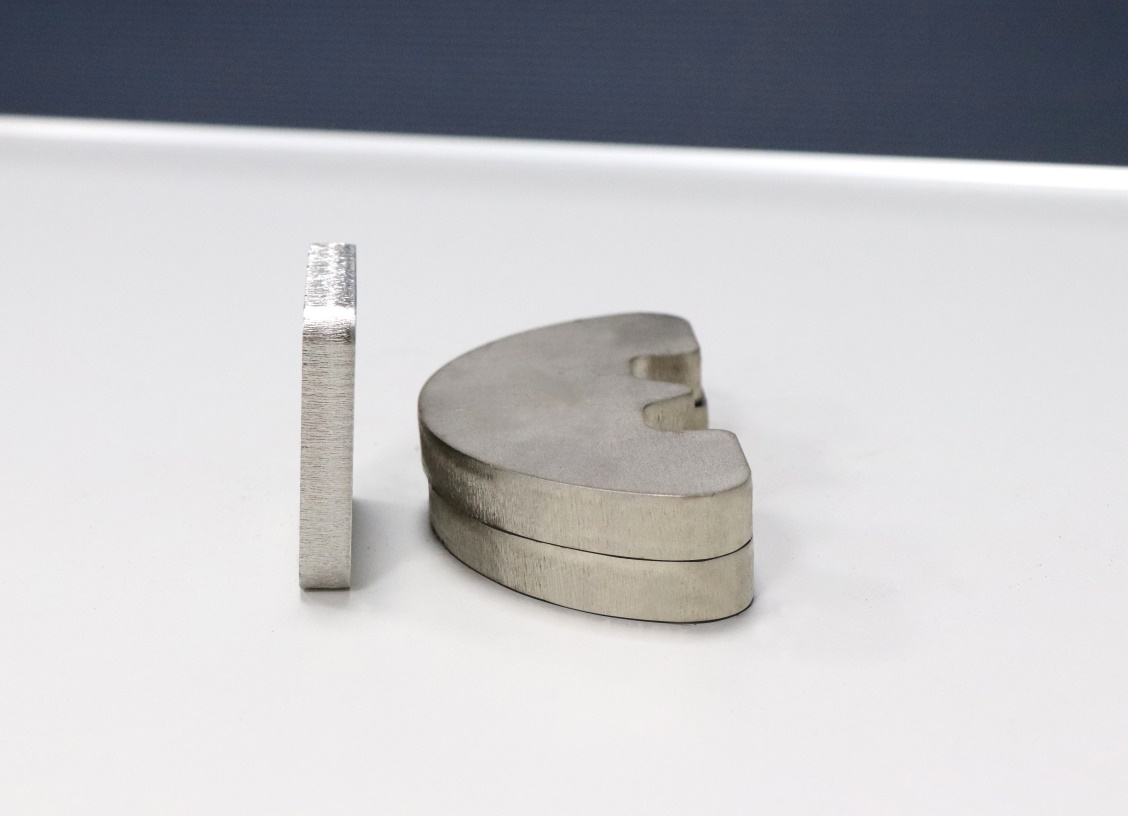

14mm/12mm/10mm cutting of aluminum

14mm/10mm cutting of stainless steel(SS)
