Products Description
| Product Name | CW Fiber Laser Source | |
| Application | cutting metal | |

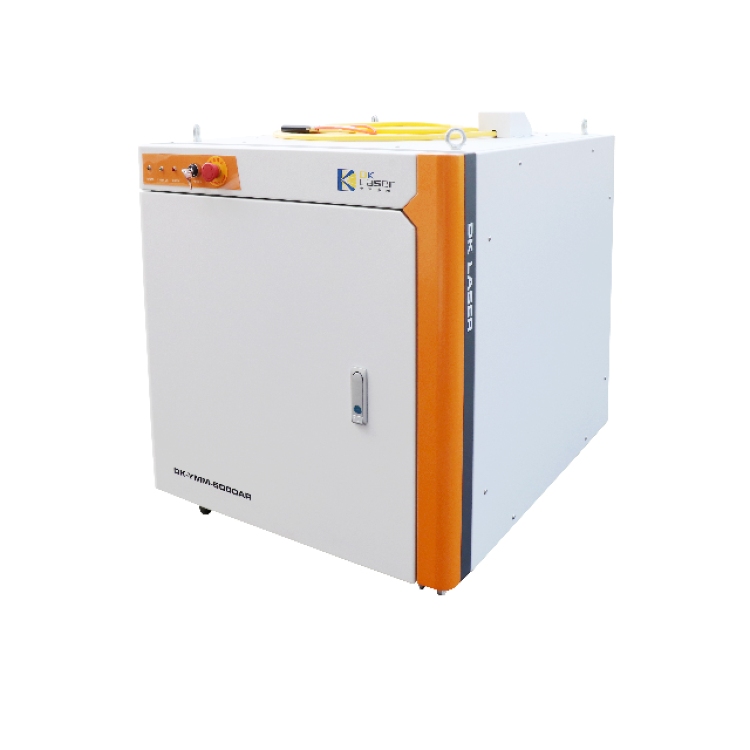

| Laser model | DK-YMM 6000AR | |
| Laser brand | DK | |
| Warranty | 2 years | |
| Operation Mode | CW/Modulation | |
| Polarization State | Random | |
| M2 | <10@100μm | |
| Beam Quality | BPP(mm·mrad) | ≤3.4@100µm |
| Output Power | 6000W | |
| Output Fiber Diameter | 100µm(50,200µm Customizable) | |
| Max. Modulation Frequency | 5kHz | |
| Rise/Fall Time | <20μs | |
| Power Range | 10%~100% | |
| Output Power Instability | ≤1.5% | |
| Center Wavelength | 1080±10nm | |
| 3dB Spectral Width | <6nm | |
| Indicated Light Wavelength | 635nm | |
| Indicated Light Power | >0.3mW | |
| Operating Voltage | 380V | |
| Operating Frequency | 50Hz | |
| Laser Power Consumption | <20kW | |
| Output Fiber Length | 20m Customizable) | |
| Cooling | Water Cooling | |
| Dimensions | 1100mm×710mm×1350mm | |
| Weight | 360kg | |
| Operating Temperature | 10℃~40℃ | |
| Storage Temperature | -15℃~60℃ | |
| Relative Humidity | 20%-80% | |
