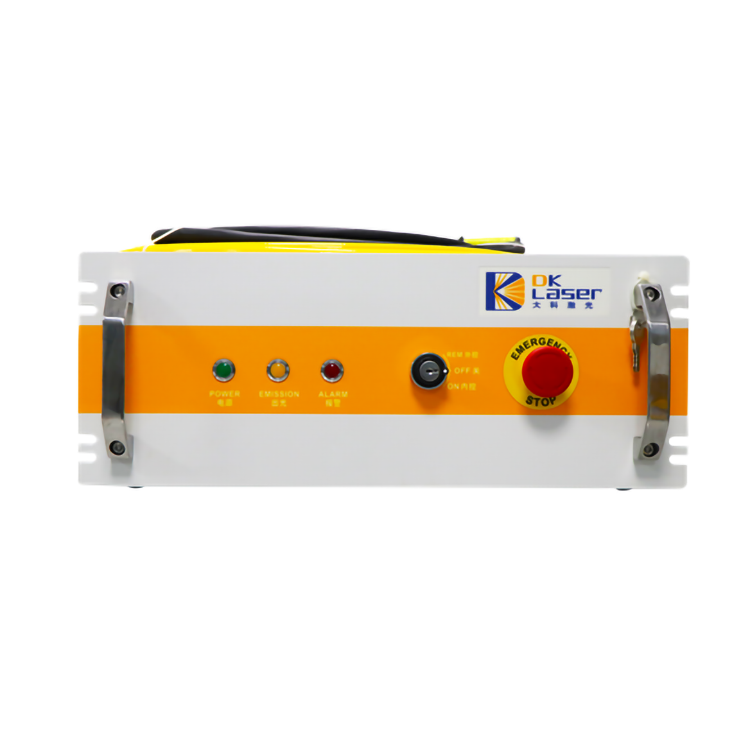

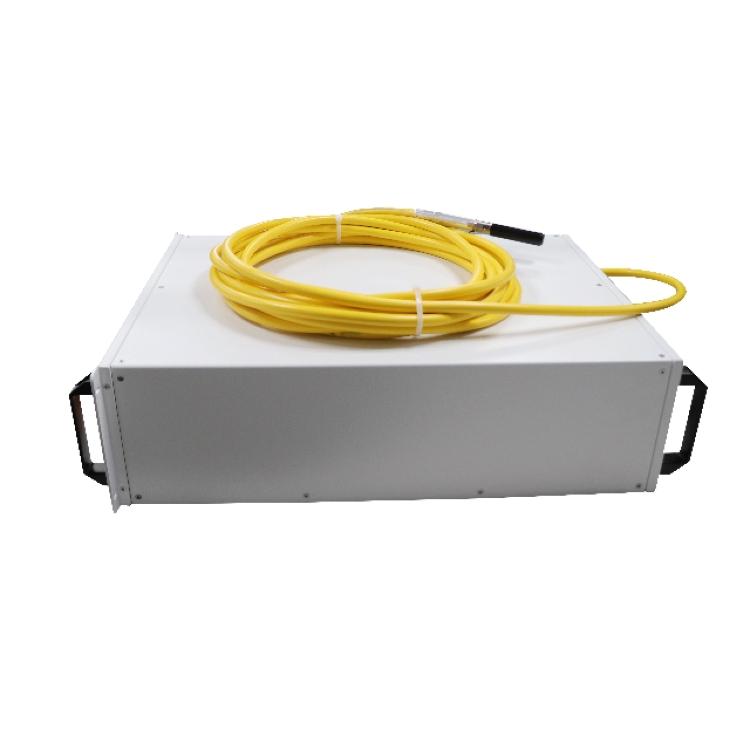

Product Name

CW Fiber Laser Source

Application

cutting metal

Laser model

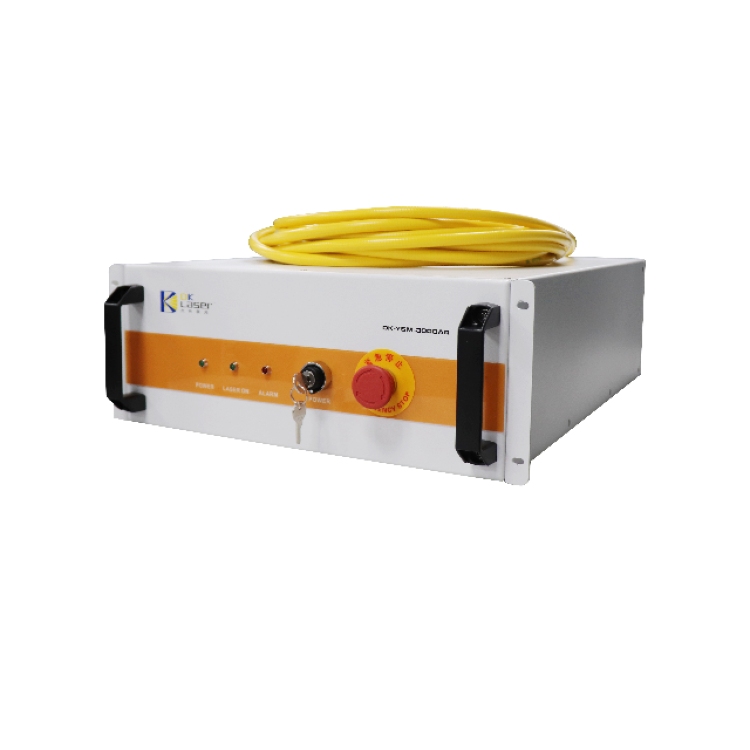

DK-YSM 3000AR

Laser brand

DK

Warranty

2 years

Operation Mode

CW/Modulation

Polarization State

Random

M2

＜1.3@25µm

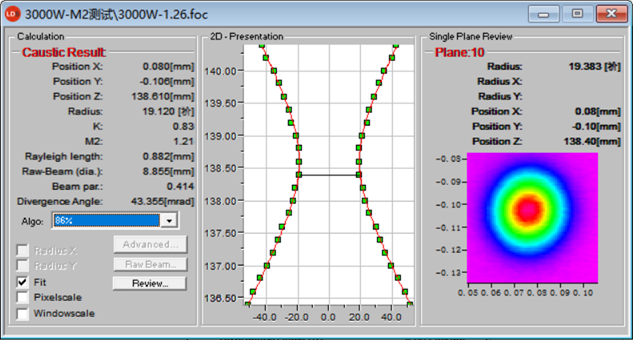

Beam Quality

BPP(mm·mrad)

≤0.45@25µm

Output Power

3000W

Output Fiber Diameter

50µm(20-100µm Customizable)

Max. Modulation Frequency

20kHz

Rise/Fall Time

<15μs

Power Range

10%~100%

Output Power Instability

≤1.5%

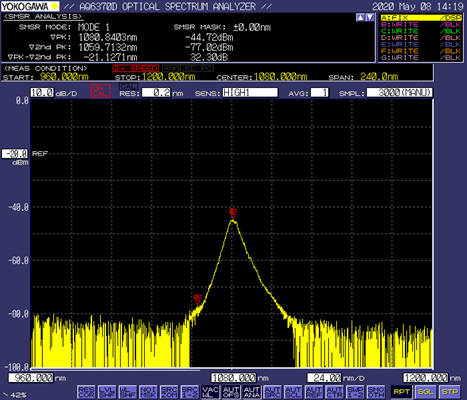

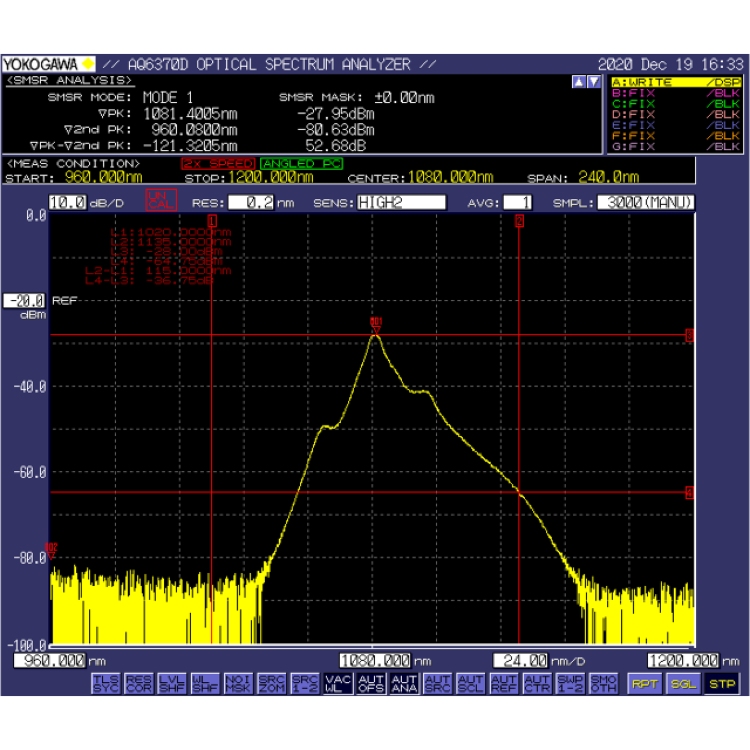

Center Wavelength

1080±10nm

3dB Spectral Width

<5nm

Indicated Light Wavelength

635nm

Indicated Light Power

>0.3mW

Operating Voltage

380V

Operating Frequency

50Hz

Laser Power Consumption

<9kW

Output Fiber Length

20m( Customizable)

Cooling

Water Cooling

Dimensions

772mm×452mm×182mm

Weight

60kg

Operating Temperature

10℃~40℃

Storage Temperature

-15℃~60℃

Relative Humidity

20%-80%
